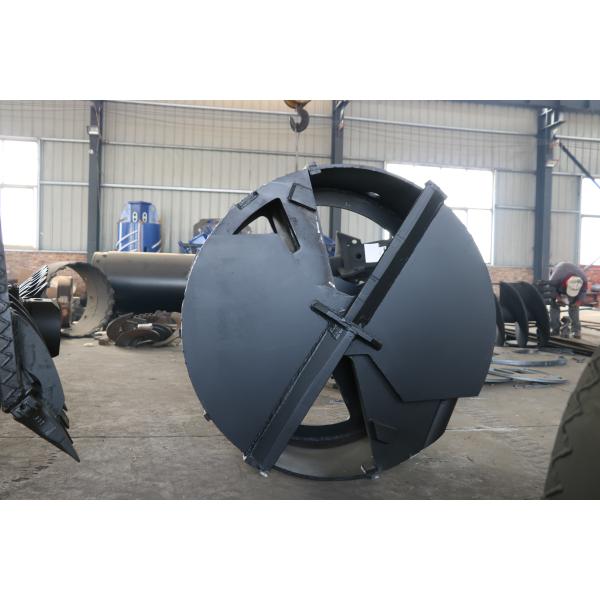

Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil

Product Categories
Hebei Tuff Heavy Industry Co., Ltd.
Contact Now

Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil

  • 1
  • 2

Brand Name : BJTUFF

Model Number : 600mm-3000mm

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiated

Supply Ability : 200 Pieces/30 days

Delivery Time : 5-8 work days

Packaging Details : Plastic cases .

Barrel error less than : 3-5mm

Bottom Type : Double bottom and double cut

Kelly Box : 130*130, 150*150,200*200 etc

Process : Coated Sand Casting

Product Name : Drilling Bucxlet

Color : Black Or As Required

Contact Now

Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil

Feature

1 Cylindrical barrel or Conical barrel(optional).
2 Throughout the ventilation hole.
3 Hard facing strips for wear protection.
4 Kelly box 130mm,150mm,200mm (optional).

Customizable Items

1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ550,φ1350 etc.

2. Bottom Custom : single bottom and double bottom design as demand;

3. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 170*170, 150*150,250*250 etc;

4. Bottom Open Mechanic : half-automatic or manful mechanic bottom open system.

Cleaning

Dia.

 Shell HIT. Shell OD. Shell THK.

Fixed Bottom

THK.

Rotate

Bottom THK.

 Teeth No. Weight
φ600 800 520 16 40 40 / 495
φ800 800 720 16 40 40 / 693
φ900 800 820 16 40 40 / 724
φ1000 800 920 16 40 50 / 935
φ1200 800 1120 16 40 50 / 1240
φ1500 600 1420 16 40 50 / 1510
φ1800 600 1720 16 50 50 / 2350
φ2000 600 1920 20 50 50 / 3150
φ2200 600 2120 20 50 50 / 3570
φ2500 600 2420 20 50 50 / 4680
φ2800 600 2720 20 50 50 / 5330
Remark : All measurements are in milimeters, weight in kilograms.

Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil


Product Tags:

Double Cut Cleaning Drilling Bucket



Double Bottom Cleaning Drilling Bucket



Spoil Cleaning Drilling Bucket


China Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil wholesale

Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil Images
